*Wholesale* 2022 EZ-GO TXT EX1 Gas Engine

2022 EzGo TXT

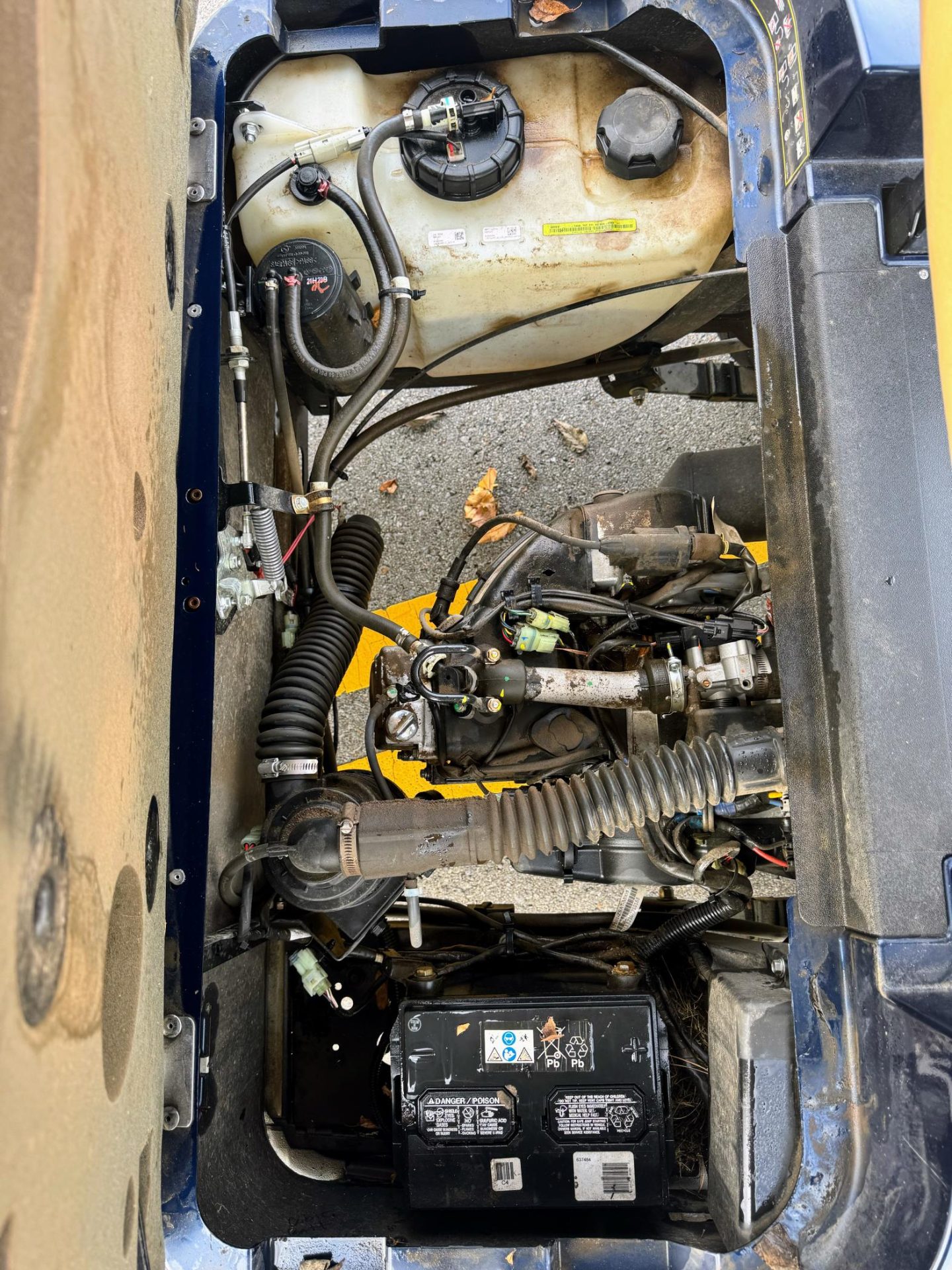

Engine & Drivetrain

• Engine Type: Single cylinder, 4-cycle, OHV (overhead valve) design.

• Displacement: 9.15 cu in (≈150 cc)

• Rated Power: 11.5 hp (8.6 kW) J1995 standard

• Fuel System: Closed-loop EFI (Electronic Fuel Injection)

• Electrical System: Brushless DC internal starter/generator

• Transmission: Continuously Variable Transmission (CVT) with differential + helical gears

• Forward / Reverse capability: Yes. Ratio example: 11.47:1 (Forward) / 14.35:1 (Reverse)

Dimensions & Weight

• Overall Length: 94.5 in (≈240 cm)

• Overall Width: 47.0 in (≈119 cm)

• Overall Height (without roof): 47.5 in (≈121 cm)

• Wheelbase: 65.7 in (≈167 cm)

• Ground Clearance @ Differential: 4.0 in (≈10 cm)

• Dry Weight: ~676 lb (≈307 kg)

Capacity

• Seating Capacity: typically 2-passenger

• Load/Carry Capacity: ~500-800 lb

Chassis / Suspension / Wheels

• Frame: Welded steel with powder-coat protection.

• Body & Finish: Injection-molded TPO (thermoplastic) panels.

• Front Suspension: Independent A-Arm with coil-over shock

• Rear Suspension: Mono-leaf spring with hydraulic shocks

• Brake System: Rear-wheel mechanical self-adjusting drum brakes; Parking brake self-compensating, single-point engagement.
